Description
Compact 67W GaN power for three devices
The Xiaomi 67W GaN Charger 2C1A (model A07ZMEU) combines gallium nitride efficiency with two USB Type-C ports and one USB Type-A port, so you can charge multiple gadgets from one compact brick. Full electrical profiles for every port combination are listed below for xiaomipakistan.com shoppers planning a desk or travel setup.
At a glance
- Ports: Type-C ×2 + Type-A ×1
- AC input: 200–240V~, 50Hz, 1.8A
- Operating temperature: 0°C–40°C
- Size: 53 × 28 × 53.9 mm (without foldable pins)
How power is shared
When more than one device is connected, the adapter distributes available wattage based on each product’s power requirements and the order in which cables were plugged in. Refer to the tables for the exact limits in each layout.

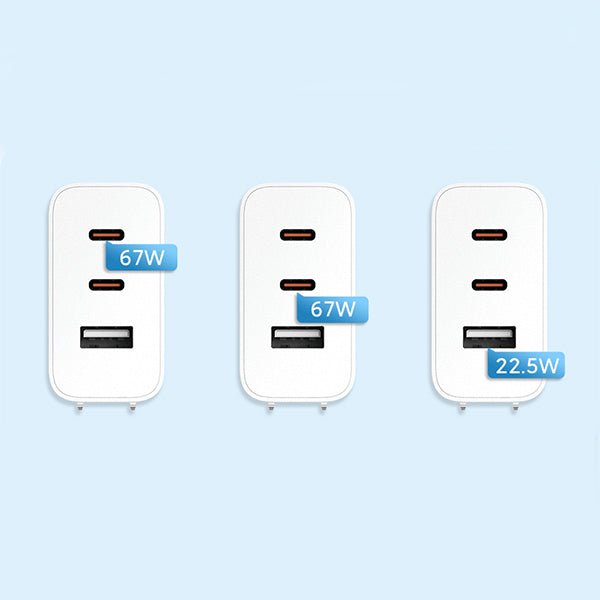

Single-port output
| Port | Supported output |
|---|---|
| Type-C1 or Type-C2 (either alone) | 5V⎓3A, 9V⎓3A, 11V⎓6.1A, 12V⎓3A, 15V⎓3A, 20V⎓3.25A |
| Type-A (alone) | 5V⎓3A, 9V⎓2.5A, 10V⎓2.25A, 12V⎓1.87A |
Dual-port: Type-C1 + Type-C2
| Port group | Supported output |
|---|---|
| First Type-C profile | 5V⎓3A, 9V⎓3A, 11V⎓3A, 12V⎓3A, 15V⎓2A, 20V⎓2.25A |
| Second Type-C profile | 5V⎓2.4A, 9V⎓2A, 12V⎓1.5A |
Dual-port: Type-C1 + Type-A
| Port | Supported output |
|---|---|
| Type-C1 | 5V⎓3A, 9V⎓3A, 11V⎓3A, 12V⎓3A, 15V⎓2A, 20V⎓2.25A |
| Type-A | 5V⎓2.4A, 9V⎓2A, 12V⎓1.5A |
Dual-port: Type-C2 + Type-A
Combined use is limited to 5V⎓3A MAX on this pairing.
Triple-port output (all three in use)
- Type-C1: 5V⎓3A, 9V⎓3A, 11V⎓3A, 12V⎓3A, 15V⎓2A, 20V⎓2.25A
- Type-C2 + Type-A together: 5V⎓2.4A MAX
